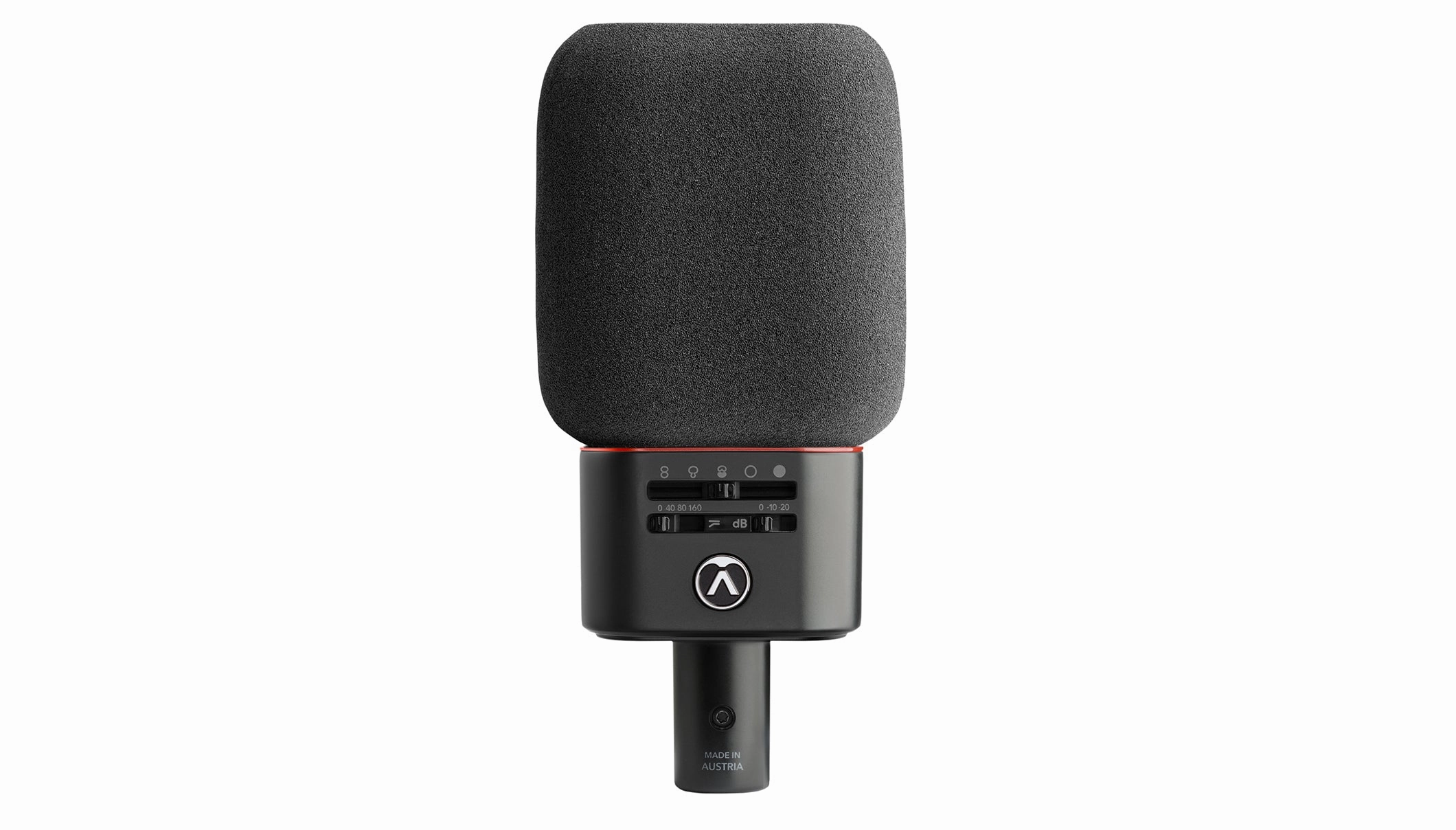

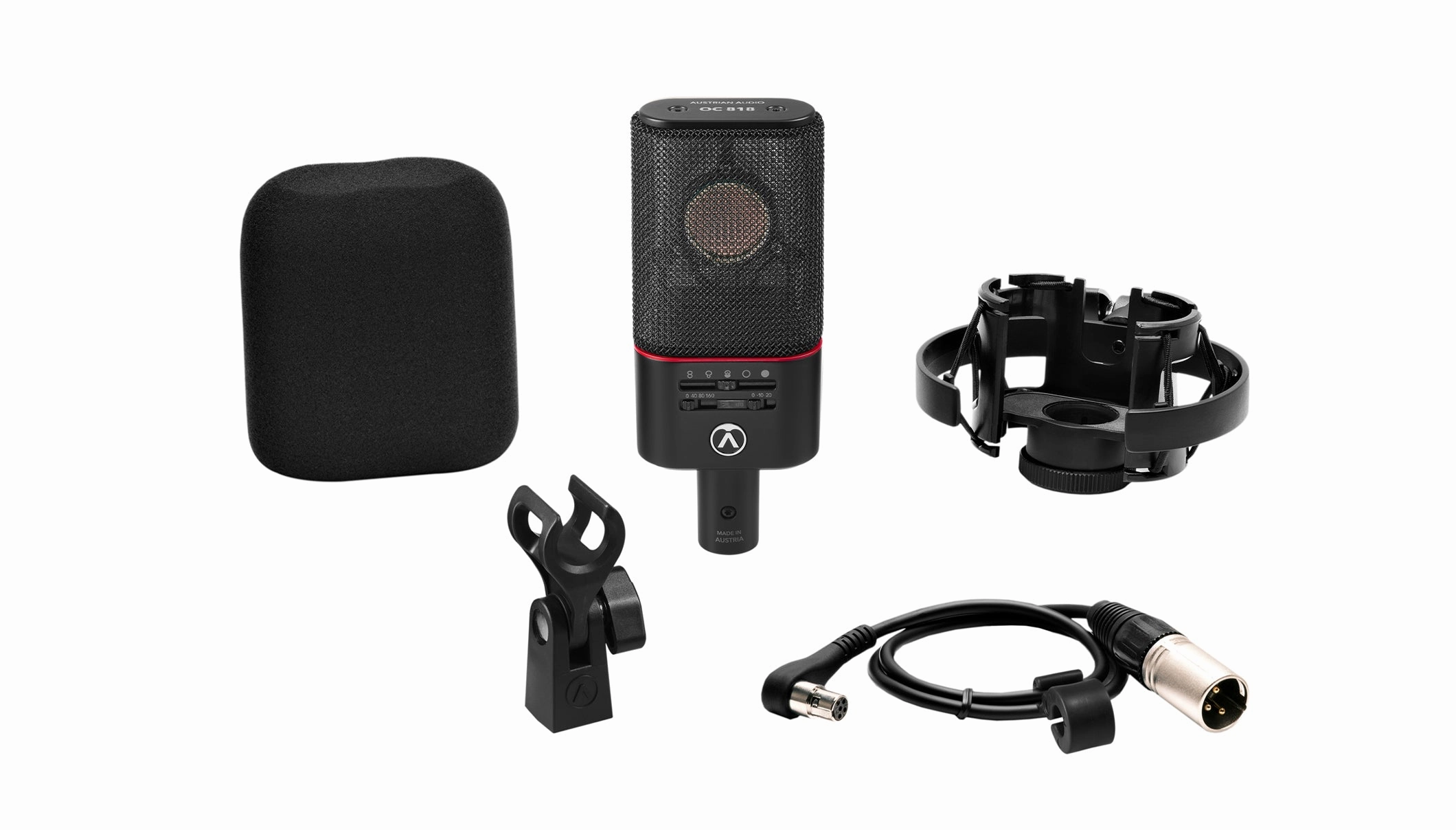

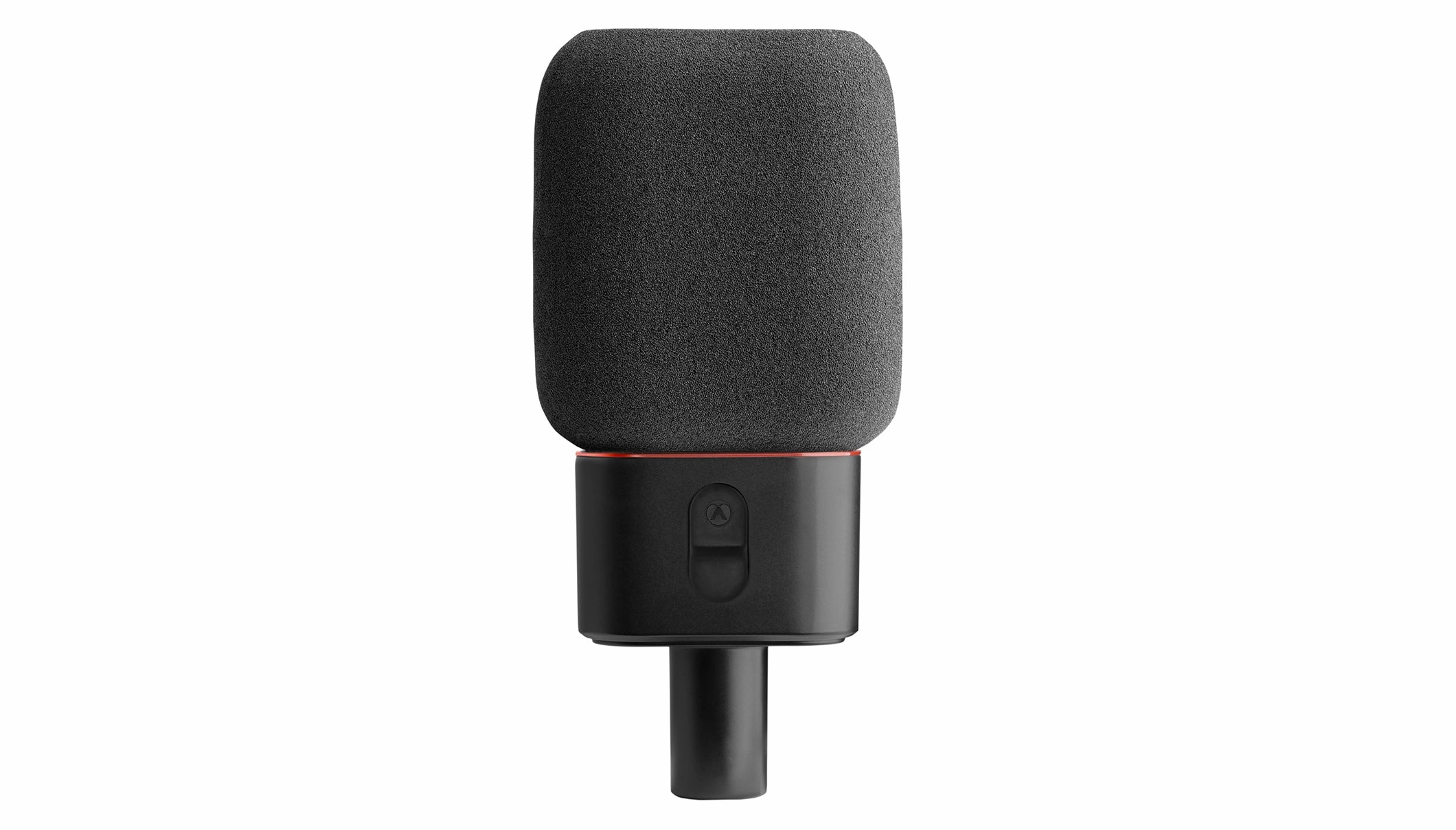

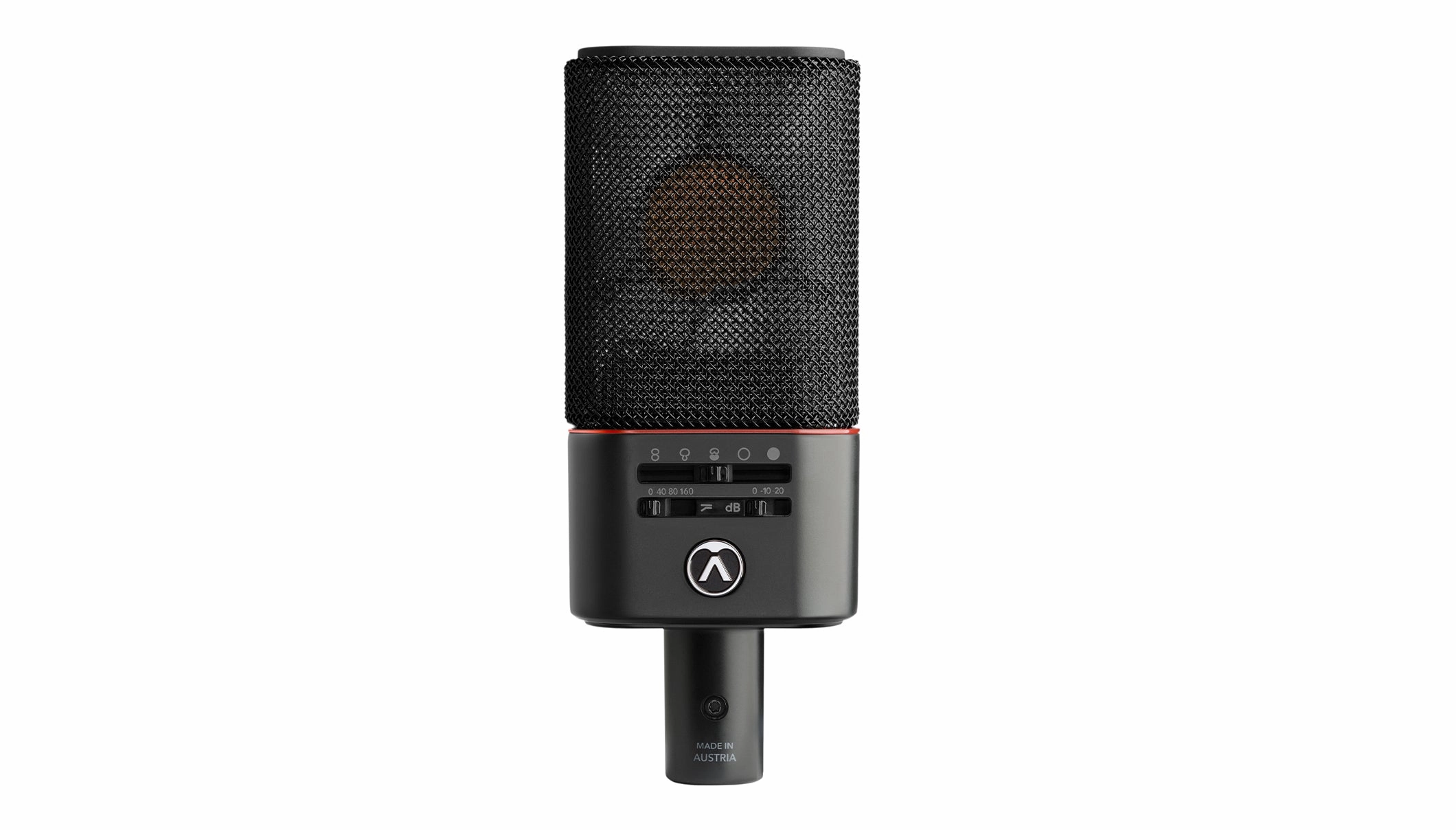

Austrian Audio OC818 Studio Set Large-Diaphragm Multipattern Condenser Microphone (1 Microphone) - Black
Engineered and manufactured in Austria, The OC818 is Austrian Audio’s premier, professional, large diaphragm microphone. Its high sensitivity, low self-noise and ability to handle everything from a whisper to extreme SPLs make it the most advanced microphone for studio, broadcast and live applications. As the unique ceramic capsule design is so consistent, any OC818 is match-paired with any other OC818, and when in cardioid mode, it can also be match-paired with any OC18, its affordable, smaller sibling.
FEATURES
- Handmade CKR12 ceramic capsule
- Made to the same critical dimensions as the classic CK12 capsules
- Multiple polar patterns
- Cardioid, omnidirectional & custom programmable
- Microprocessor control of polarisation voltages
- Allows remote controlled polar pattern settings
- Two different analogue high-pass filters with three settings
- 40 Hz, 80 Hz, 160 Hz
- Two different types of analogue pads
- -10 dB, -20 dB
SPECIFICATIONS
- Directional characteristics: figure-8, supercardioid,
- cardioid, omnidirectional & custom programmable
- Frequency range: 20 Hz - 20 kHz
- Sensitivity (all directions): 13mV/Pa
- Equivalent noise level: 9 dB SPL (A)
- Max SPL: 148 dB SPL (158 dB SPL)
- Switchable pad: -10 dB, -20 dB
- Analog Low Cut filter: 40 Hz (2nd order), 80 Hz (2nd order),
- 160 Hz (1st order down to 80Hz, 2nd order below)
- Impedance: 275 Ω (symmetrical)
- Load impedance: > 1 kΩ
- Supply voltage: 48 V (< 4mA, typical 2.1mA)
- Main Connector: XLR 3 pin
- Connector for back membrane or remote: Mini XLR 5 pin
