The 501-19 Height Adjustable Frame is the frame only. If you want a height-adjustable solution but would like to add your own desktop, the frame-only option is for you. The 501-19 is identical to the DM19 Frame.

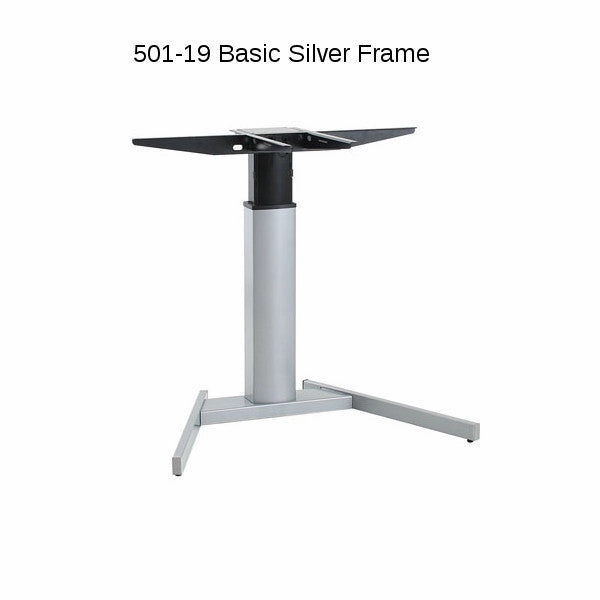

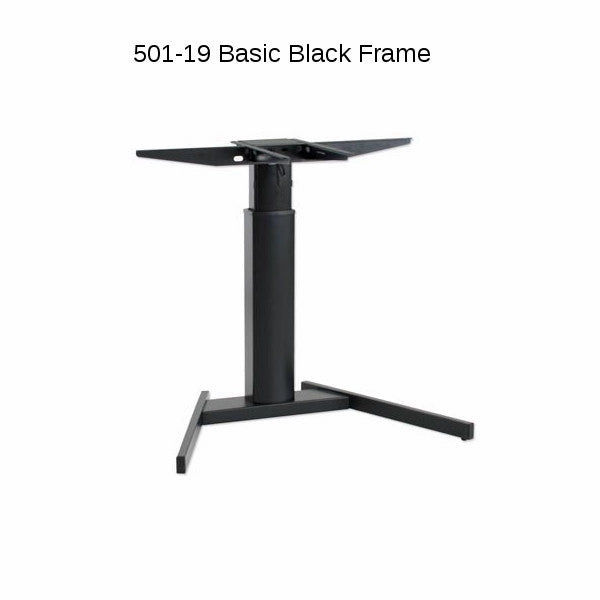

Want a complete frame desktop solution? Click for the DM19 Basic, the DM19 Design, the DM19 Centre and the DM19 Wall Mount
endshortdes
| Features |
- Highly functional and versatile single column frame
- With 100 kg lift capacity - (i.e. how much weight can be handled by the frame)
- 520 mm of electric height adjustment
- Includes built-in cable management system (through rails) for neat & tidy cabling
| Specifications |
- Height Range: 660 - 1180 mm
- Lift Capacity: 100 kg
- Frame Size

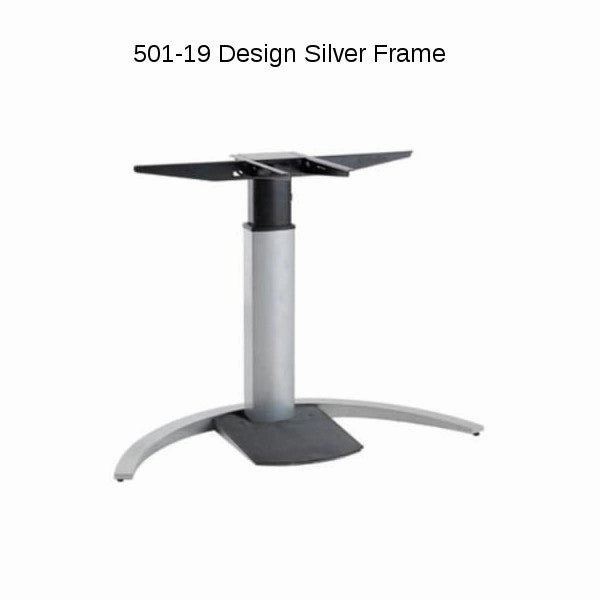

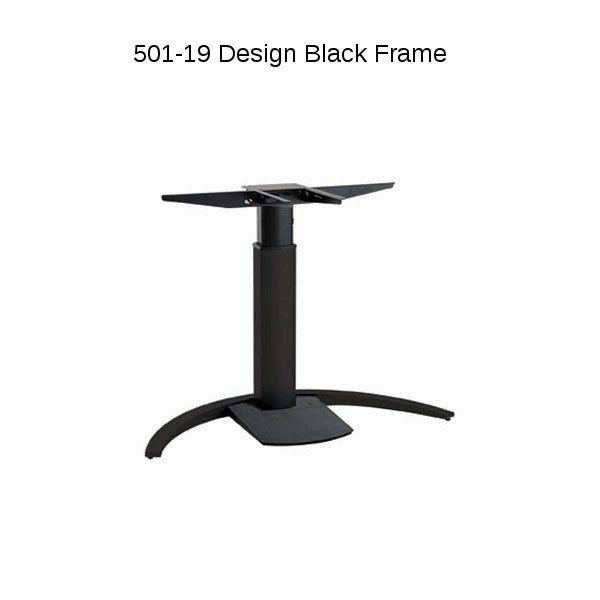

Design - 1200 w x 490 d mm

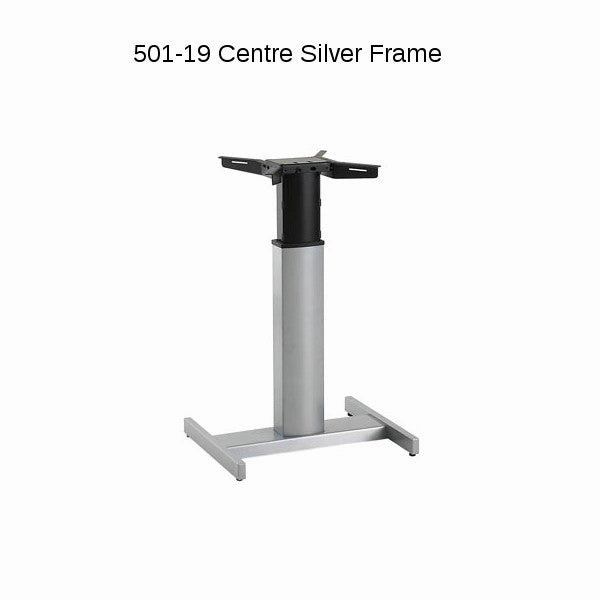

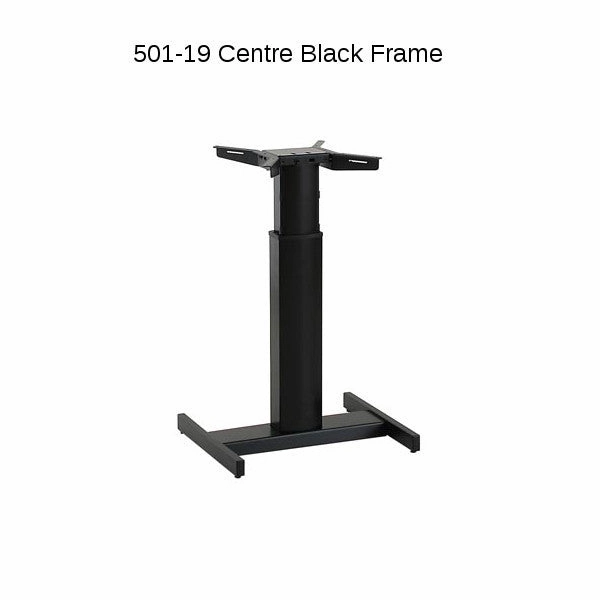

Centre - 600 w x 500 d mm

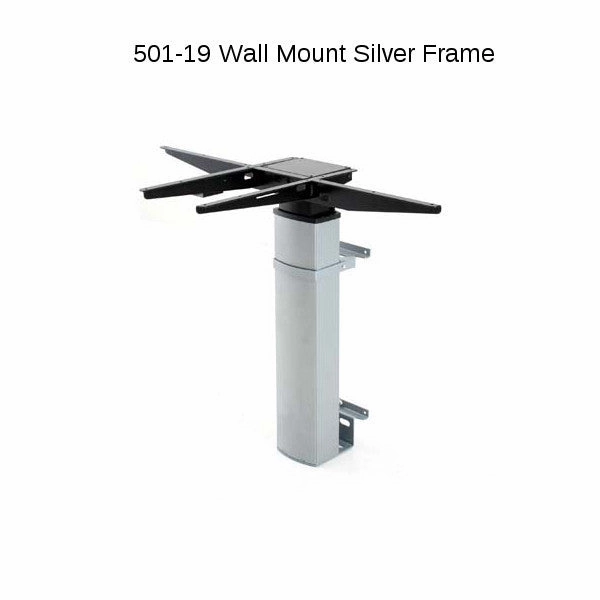

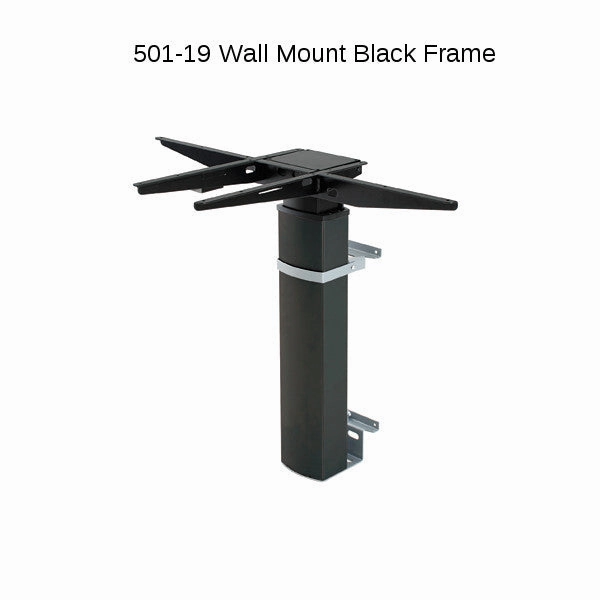

Wall Mount - 900 w x 530 d mm
- Frame Colour Options
- Silver or Black
- Materials
- Desktop: 22 MDF with A-Grade wood veneer matching 2 mm ABS edge
- Frame: Powder-coated steel
- Frame Type:
- Single Column or Wall Mount
| Warranty |
- 2 years limited (electrics)
- 5 years limited (frame)
| Shipping |
- Desks are shipped flat-packed & require assembly.
- Installation services are available upon request
Product Code: 501-19
DOWNLOAD Assembly Instructions
DOWNLOAD Basic Dimensional Drawing
DOWNLOAD Centre Dimensional Drawing
DOWNLOAD Design Dimensional Drawing
REQUEST further information
Correct Usage Video:
